Structure simulation

Structure simulation functions available in MAISE [1] include: unit Cell relaxation, Molecular dynamics (MD), and basic Γ-point Phonon calculations. The structure, the interaction model, and the job settings are specified in POSCAR, model, and setup files, respectively. These three files need to be present in the working directory when running simulations of structures using MAISE.

  • POSCAR contains a VASP-format representation of the structure.

  • model contains information about the interatomic potential.

  • setup contains specifications on the MAISE run settings.

Cell relaxation

Description

Cell relaxation, also commonly referred to as ‘local structure optimization’, can be performed by using NN or other classical interatomic interaction models available in MAISE. Structure optimizations use analytic derivative-based BFGS [2] or CG [3] algorithms from GSL package. The local optimization is carried out until the maximum number of iterations, MITR, or the targeted enthalpy difference between successive steps, ETOL, is reached.

The unit cell parameters, total atomic energies, and force/stress components can be outputted at each relaxation step in an OUTCAR file. The final relaxed structure is saved in a CONTCAR file containing atomic positions and, optionally, velocities from the last ionic step of the relaxation. These files are written in the VASP-style format which can be utilized by external codes to perform vibrational property analysis, global structure optimization, etc.

Table 1 lists setup parameters relevent for cell relaxation simulations using MAISE.

Table 1: Parameters for cell relaxation.

FLAG

Short Description

JOBT

job type: structure relaxation (20)

NPAR

number of cores for parallel run

NDIM

dimensionality of unit cell: crystal (3); cluster (0)

MITR

maximum number of cell optimization steps

ETOL

error tolerance for cell optimization convergence

RLXT

cell optimization type: force only (2); full cell (3); volume (7)

PGPA

external pressure in GPa

COUT

output options in OUTCAR file

MINT

minimizer type: BFGS2 (0); CG-FR (1); CG-PR (2); steepest descent (3)

UREP

strength of the additional repulsion in NN potentials

FRAC

fraction of shortest bond to Rmin to consider structure collapsed

JOBT controls the job type. It should be set to 20 for structure relaxations.

NPAR sets the number of cores that will be allocated toward processing the MAISE run. This task is internally parallelized over the number of atoms, so NPAR should not exceed the total number of atoms in the system. Ideally, for equal distribution of load, it is recommended that number of atoms in the system be a multiple of NPAR.

NDIM controls whether the system that is being relaxed is treated as a periodic boundary structure type (wire, film, bulk) or of a cluster type (nanoparticle). Failure to define NDIM properly will yield unphysical results.

  • 3 for periodic boundary structure types

  • 0 for cluster structure types

MITR controls the maximum number of optimization steps. If the error tolerance described in ETOL is reached sooner, the relaxation will stop regardless of MITR.

ETOL controls error tolerance for the optimization convergence. If the difference in the total enthalpy in eV between two successive steps never falls below this value the relaxation will run to MITR steps.

RLXT controls the cell optimization type. It is similar to the ISIF tag in VASP. Currently allowed values are:

Value

Degree of freedom

atomic position

cell shape

cell volume

2

yes

no

no

3

yes

yes

yes

7

no

no

yes

PGPA controls the external hydrostatic pressure in GPa that is being applied to the system.

COUT controls how much infromation is outputted in the OUTCAR file regarding the energy and forces of the system.

Value

Energy

Force

00

final step

no

01

first and final steps

no

02

all steps

no

10

final step

final step

11

first and final steps

first and final steps

12

all steps

all steps

MINT controls which analytic derivative-based algorithm from the GSL package is used for relaxation. Full documentation for these algorithms can be found at this URL. Currently MAISE has the following options:

  • 0 BFGS2: recommended version of Broyden–Fletcher–Goldfarb–Shanno algorithm

  • 1 CG-FR: Fletcher-Reeves conjugate gradient algorithm

  • 2 CG-PR: Polak-Ribiere conjugate gradient algorithm

  • 3 the steepest descent algorithm

Note

Presently, MAISE enforces symmetry only for unit cells with orthogonal lattice vectors by setting to zero all off-diagonal stresses below \(10^{-8}\) eV/A \(^{3}\) and atomic force components below \(10^{-8}\) eV/A. For example, the in-plane symmetry of hexagonal unit cells might not be preserved during full structural relaxations.

UREP defines the strength of an additional repulsive term on top of a NN potential when interatomic distances fall below a minimum value that depends on the elements. In practically all cases, use the default of 100.0 eV/Ang. To switch it off, set it to a negative value.

FRAC defines the ratio of the interatomic distance to an element-dependent minimum distance allowed between two atoms. If the ratio falls below the specified value the relaxation prints out an ERROR message in the OUTCAR file. In most cases, use the default value of 1.0. It is set to a lower value (e.g., 0.95) only during EVOS runs generating NN reference data, as this enables the addition of ‘slightly collapsed’ configurations.

Examples

The following example displays the relaxation of a slighlty distorted FCC-Ag structureusing our most recent NN interatomic potential model. In order to run a cell relaxation, the working directory should include the following files: maise, setup, model, and POSCAR.

The setup file should be adjusted using the FLAG settings described above under Cell relaxation. The settings used in this example are:

======================================================================================
                                      JOB/MODEL types
======================================================================================
JOBT  20
======================================================================================
                                  OPTIMIZATION parameters
======================================================================================
NPAR  4
NDIM  3
MITR  30
ETOL  1e-8
RLXT  3
PGPA  0.0
COUT  12
MINT  0

The starting POSCAR structure before relaxation used in this example is displayed below.

Ag
  1.00000000000000
   4.16409010773519    0.00000000000000    0.00000000000000
   0.00000000000000    4.16409010773519    0.00000000000000
   0.00000000000000    0.00000000000000    4.16409010773519
 Ag
 4
 direct
   0.00000000000000    0.00000000000000    0.00000000000000
   0.00000000000000    0.50020000000000    0.50000000000000
   0.50000000000000    0.00000000000000    0.50000000000000
   0.50000000000000    0.50000000000000    0.00000000000000

In order to relax this structure, run the executable maise.

$ maise

The output printed out on the screen in this case is:

=======================================================================
|               Module for Ab Initio Structure Evolution              |
|                        version     maise.2.7.00                     |
|                 https://github.com/maise-guide/maise                |
=======================================================================
|                            Cell relaxation                          |
=======================================================================


  BFGS2 relaxation: 21 adjustable parameters

    0     -11.3100852801119967
    1     -11.3100866766688579      -0.0000013965568613
    2     -11.3100868572737170      -0.0000001806048591
    3     -11.3100868572736903       0.0000000000000266

  ENERGY CALLS =    15
  FORCE  CALLS =     3

  INI     -11.31008528
  DIF      -0.00000158
  FIN     -11.31008686

After a successful relaxation, the following three files are produced in the working directory: CONTCAR, OSZICAR, and OUTCAR.

CONTCAR provides the relaxed structure.

Ag
  1.00000000000000
    4.16409012368350    0.00000000000000    0.00000000000000
    0.00000000000000    4.16409012591455    0.00000000000000
    0.00000000000000    0.00000000000000    4.16409012368350
Ag
4
direct
  0.00000000000000    0.00004999999182    0.00000000000000
  0.00000000000000    0.50005000007339    0.50000000000000
  0.50000000000000    0.00004999999182    0.50000000000000
  0.50000000000000    0.50004999994298    0.00000000000000

OSZICAR contains a list of enthalpies at each iterated relaxation step of the run.

-11.31008528
-11.31008668
-11.31008686
-11.31008686

OUTCAR is a summary of the run, with its content dependent on the COUT FLAG.

----------------------------------------------------------------------------------------------------------
    Cell optimization    with maise.2.5.00   model 00D7FB00   on  Thu Jul  9 10:05:18 2020
----------------------------------------------------------------------------------------------------------
   optimizer type          0
   relaxation type         3
   target pressure         0.00 GPa
   dimensionality          3
   species                 Ag
   atoms of each species   4
   total number of atoms   4
----------------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------
                   LATTICE VECTORS                                                 VOLUME (Angst^3/atom)
----------------------------------------------------------------------------------------------------------
          4.164090      0.000000      0.000000                                      18.050963 vol
          0.000000      4.164090      0.000000
          0.000000      0.000000      4.164090
----------------------------------------------------------------------------------------------------------
                 POSITION (Angst)                     TOTAL-FORCE (eV/Angst)           ATOM ENERGY (eV)
----------------------------------------------------------------------------------------------------------
       0.000000     0.000000     0.000000       0.000000     0.001961     0.000000   -2.827521316230
       0.000000     2.082878     2.082045       0.000000    -0.003788     0.000000   -2.827520865463
       2.082045     0.000000     2.082045       0.000000     0.001961     0.000000   -2.827521316230
       2.082045     2.082045     0.000000       0.000000    -0.000134     0.000000   -2.827521782188
----------------------------------------------------------------------------------------------------------
  Total        0.00000010      0.00000011      0.00000010      0.00000000      0.00000000      0.00000000
  in kB        0.00015907      0.00017858      0.00015907      0.00000000      0.00000000      0.00000000
----------------------------------------------------------------------------------------------------------
  iter   0   total enthalpy=   -11.31008528   energy=    -11.31008528      -2.82752132     -2.82752132
----------------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------
                   LATTICE VECTORS                                                 VOLUME (Angst^3/atom)
----------------------------------------------------------------------------------------------------------
          4.164090      0.000000      0.000000                                      18.050963 vol
          0.000000      4.164090      0.000000
          0.000000      0.000000      4.164090
----------------------------------------------------------------------------------------------------------
                 POSITION (Angst)                     TOTAL-FORCE (eV/Angst)           ATOM ENERGY (eV)
----------------------------------------------------------------------------------------------------------
       0.000000     0.000248     0.000000       0.000000    -0.000378     0.000000   -2.827521668417
       0.000000     2.082398     2.082045       0.000000    -0.000434     0.000000   -2.827521709198
       2.082045     0.000248     2.082045       0.000000    -0.000378     0.000000   -2.827521668417
       2.082045     2.082028     0.000000       0.000000     0.001190     0.000000   -2.827521630637
----------------------------------------------------------------------------------------------------------
  Total        0.00000001      0.00000001      0.00000001      0.00000000      0.00000000      0.00000000
  in kB        0.00001465      0.00001876      0.00001465      0.00000000      0.00000000      0.00000000
----------------------------------------------------------------------------------------------------------
  iter   1   total enthalpy=   -11.31008668   energy=    -11.31008668      -2.82752167     -2.82752167
----------------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------
                   LATTICE VECTORS                                                 VOLUME (Angst^3/atom)
----------------------------------------------------------------------------------------------------------
          4.164090      0.000000      0.000000                                      18.050963 vol
          0.000000      4.164090      0.000000
          0.000000      0.000000      4.164090
----------------------------------------------------------------------------------------------------------
                 POSITION (Angst)                     TOTAL-FORCE (eV/Angst)           ATOM ENERGY (eV)
----------------------------------------------------------------------------------------------------------
       0.000000     0.000208     0.000000       0.000000     0.000000     0.000000   -2.827521714318
       0.000000     2.082253     2.082045       0.000000     0.000000     0.000000   -2.827521714318
       2.082045     0.000208     2.082045       0.000000     0.000000     0.000000   -2.827521714318
       2.082045     2.082253     0.000000       0.000000     0.000000     0.000000   -2.827521714318
----------------------------------------------------------------------------------------------------------
  Total       -0.00000000     -0.00000000     -0.00000000      0.00000000      0.00000000      0.00000000
  in kB       -0.00000343     -0.00000358     -0.00000343      0.00000000      0.00000000      0.00000000
----------------------------------------------------------------------------------------------------------
  iter   2   total enthalpy=   -11.31008686   energy=    -11.31008686      -2.82752171     -2.82752171
----------------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------
                   LATTICE VECTORS                                                 VOLUME (Angst^3/atom)
----------------------------------------------------------------------------------------------------------
          4.164090      0.000000      0.000000                                      18.050963 vol
          0.000000      4.164090      0.000000
          0.000000      0.000000      4.164090
----------------------------------------------------------------------------------------------------------
                 POSITION (Angst)                     TOTAL-FORCE (eV/Angst)           ATOM ENERGY (eV)
----------------------------------------------------------------------------------------------------------
       0.000000     0.000208     0.000000       0.000000     0.000000     0.000000   -2.827521714318
       0.000000     2.082253     2.082045       0.000000     0.000000     0.000000   -2.827521714318
       2.082045     0.000208     2.082045       0.000000     0.000000     0.000000   -2.827521714318
       2.082045     2.082253     0.000000       0.000000     0.000000     0.000000   -2.827521714318
----------------------------------------------------------------------------------------------------------
  Total       -0.00000000     -0.00000000     -0.00000000      0.00000000      0.00000000      0.00000000
  in kB       -0.00000343     -0.00000358     -0.00000343      0.00000000      0.00000000      0.00000000
----------------------------------------------------------------------------------------------------------
  iter   3   total enthalpy=   -11.31008686   energy=    -11.31008686      -2.82752171     -2.82752171
----------------------------------------------------------------------------------------------------------




 Total CPU time used (sec):      0.57613000     wall time (sec):     0.12232300

For more examples, please view examples of relaxation directory on MAISE’s Github page.

Molecular dynamics

Description

MD simulations can be run in the microcanonical ensemble (NVE) with the Verlet algorithm [4], the canonical ensemble (NVT) with the Nosé-Hoover thermostat [5][6]a and isobaric- isothermal ensemble (NPT) with a combination of the Nosé-Hoover thermostat and the Berend- sen barostat [7]. The velocities are initialized either according to the Maxwell distribution at a given starting temperature or with the values specified in the POSCAR file. MAISE outputs energies, lattice parameters, the Lindemann index, average RDF, etc. for each temperature. In the current version of MAISE, the Lindemann index value is well-defined only for NPs and the barostat is implemented for unit cells with orthogonal lattice vectors.

Table 2 lists setup parameters relevant for MD simulations.

Table 2: Setup parameters for MD simulations.

FLAG

SHORT DESCRIPTION

JOBT

job type: molecular dynamics (21)

MDTP

MD run type: NVE (10); NVT (20); NPT (30); isobaric-isothermal (40)

NPAR

number of cores for parallel run

TMIN

starting temperature of the simulation

TMAX

final temperature of the simulation

TSTP

temperature increment during the simulation

DELT

integration timestep in femtoseconds

NSTP

number of integration steps per temperature

CPLT

thermostat coupling constant

CPLP

barostat coupling constant

ICMP

isothermal compressibility in 1/GPa

NDIM

dimentionality of the unit cell: crystal (3); cluster (0)

JOBT controls the job type. It should be set to 21 for molecular dynamics.

MDTP controls MD run type. Currently we allow following types of MD runs:

  • 10 NVE run with the Verlet algorithm

  • 20 NVT run with the Nosé-Hoover thermostat

  • 30 NPT run with the combination of the Nosé-Hoover thermostat and the Berendsen barostat.

  • 40 allow the system to evolve in the isobaric-isothermal ensemble

Note

If the user wishes to provide custom starting velocities as opposed to the Maxwell distribution, the MDTP flage should be increased by 1. For example, to define starting velocities and perform an NVT run, please include velocities at the end of POSCAR and change MDTP from 20 to 21.

NPAR sets the number of cores that will be allocated toward processing the MAISE run. This task is internally parallelized over the number of atoms, so NPAR should not exceed the total number of atoms in the system. Ideally, for equal distribution of load, it is recommended that number of atoms in the system be a multiple of NPAR.

TMIN controls the initial temperature of the simulation.

TMAX controls the final temperature of the simulation.

TSTP controls the temperature increment during the simulation. If TMIN is equal to TMAX the value of TSTP is irrelevant.

DELT defines the value of the integration time step in femtoseconds. Typical values are 1-2 fs.

NSTP controls how many integration steps are carried out per each temperature step.

CPLT controls coupling constant for thermostat. Its values should lie within the range 0-100. Lower values for this parameter correspond to a more loosely coupled system with the heat bath. If the user does not provide this parameter, it is defaulted to 25.

CPLP controls coupling constant for barostat. Its values should lie within the range 0-100. Lower values for this parameter correspond to a more loosely coupled system with the pressure bath. If the user does not provide this parameter, it is defaulted to 50.

ICMP controls isothermal compressibility for the system. This parameter is relevant in runs when barostat is present.

NDIM controls whether the simulated structure is treated as periodic (wire, film, bulk) or non-periodic (nanoparticle). Failure to define NDIM properly will yield unphysical results.

  • 3 for periodic boundary structure types

  • 0 for cluster structure types

Examples

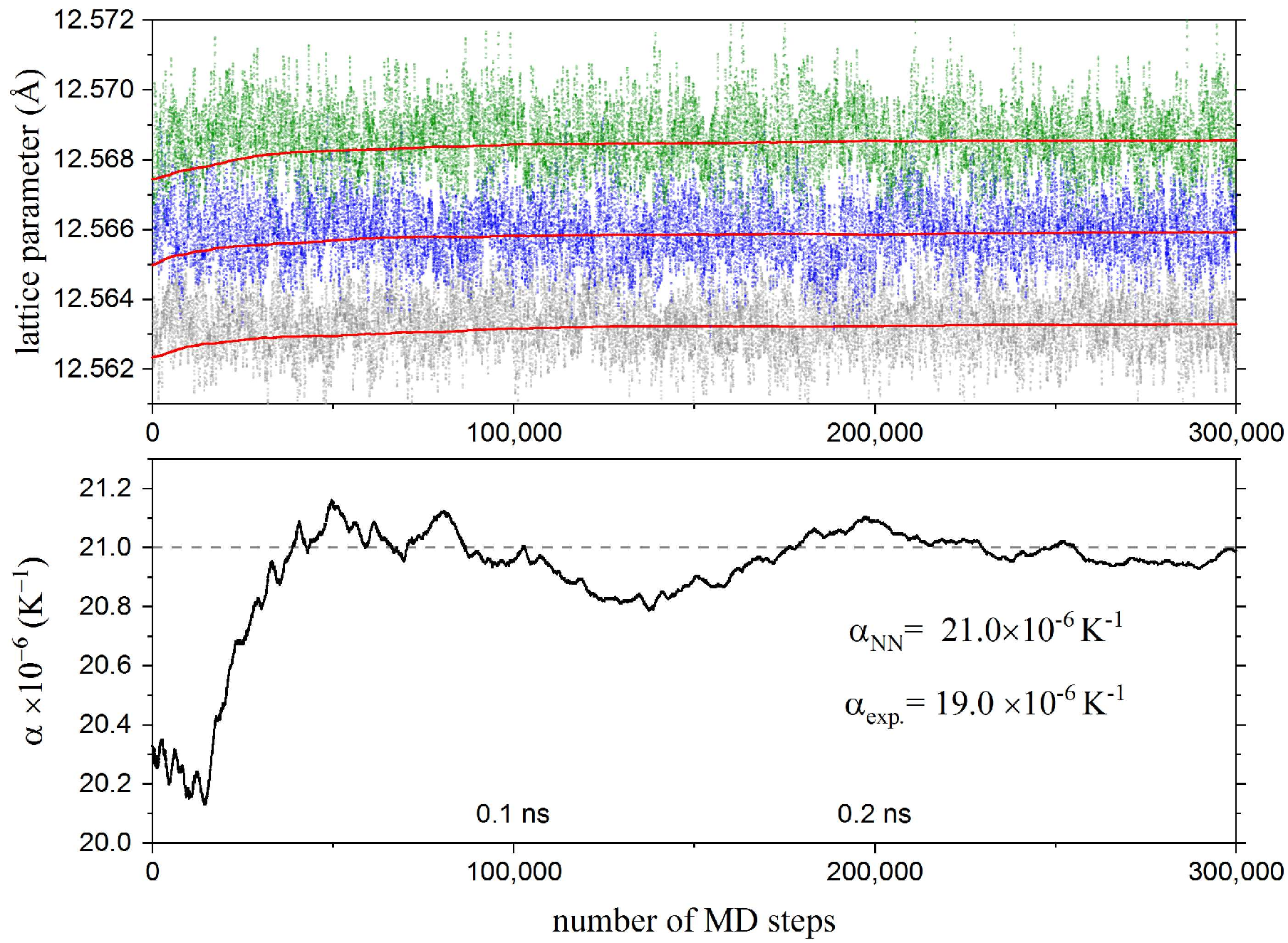

In the example featured in Ref. [1], the linear thermal expansion coefficients around 300K were calculated for 3 elements: Ag, Cu, and Na.

To achieve this, NPT runs were carried out at temperatures 290K, 300K and 310K. The linear expansion coefficients were calculated by numerically differentiating the lattice constants with respect to the temperature.

To run each of the calculations, the following 4 files need to be present in the working directory: maise, POSCAR, setup, and model.

  • POSCAR contains a representation of the structure.

  • model is an interatomic interaction potential model relevant to the system.

  • setup contains the FLAG settings for the MAISE run.

For these calculations the following settings were specified in the setup file.

===============================================================================
                                        JOB/MODEL types
===============================================================================
JOBT  21
===============================================================================
NPAR  16
PGPA  0.0

===============================================================================
                                    MOLECULAR DYNAMICS parameters
===============================================================================
MDTP  30
TMIN  290.0
TMAX  290.0
TSTP  20.0
DELT  1.0
NSTP  500000
CPLT  25.0
CPLP  100.0
ICMP  0.007
NDIM  3

Each run is carried out by executing MAISE:

$ maise

After a successful run, several files listed below will be produced in the working directory.

  • ave-out.dat contains the final averages for potential energy, kinetic energy, internal pressure, lattice parameter, change in energy, and Lindemann index.

  • AVERAGE-TTT is the “average” structure for the given temperature TTT - a structure created by averaging atomic positions.

  • CONTCAR is the final structure at the end of the run.

  • CONTCAR-TTT is the structure at the end of the temperature TTT.

  • RDF-TTT.dat is the average radial distribution function (RDF) at temperature TTT.

  • TEMP-TTT.dat contains intermediate values (at every 10 integration steps) of the parameters present in ave-out.dat.

The following plot shows the lattice parameters during the MD runs and the convergence of the linear thermal expansion coefficient for Ag.

_images/md-example.png

Phonon calculations

Description

MAISE can perform basic phonon calculations by evaluating the atomic forces for a given relaxed structure using a NN interatomic model or a traditional potential available in MAISE. Our studies of vibrational properties [8] have been performed with an external PHON package [9] because it readily links with VASP or MAISE for a consistent comparison of the NN models against the DFT.

Presently, MAISE has an internal option to calculate Γ-point phonons with the frozen phonon method in the quasi-harmonic approximation. The dynamical matrix is constructed by numerical differentiation of the atomic forces. The magnitude of atomic displacements of each atom is defined by the DISP parameter. Due to the negligible numerical noise of the NN analytic forces, the displacement values can be kept small to reduce the anharmonic effects and satisfy the acoustic sum rule.

The main application of this basic feature is to determine the presence of soft frequencies in the analysis of structures’ dynamical stability. The code marks trivial zero-frequency translational (and rotational) modes by checking whether the eigenvectors generate net linear (and angular) momenta in crystals (and clusters). Ordered frequencies and the corresponding eigenvectors are printed in the OUTCAR file and can be used for introducing soft-mode mutations in global evolutionary searches [10] or monitoring nudged elastic band method convergence in transition state searches.

Table 3 lists setup parameters relevent for phonon calculation simulations using MAISE.

Table 3: Setup parameters relevant for phonon calculations.

FLAG

SHORT DESCRIPTION

JOBT

job type: phonon calculations (22)

DISP

size of the displacement made to each atom in Angstroms

NPAR

number of cores for parallel run

NDIM

dimentionality of the unit cell: crystal (3); cluster (0)

JOBT controls the job type. It should be set to 22 for phonon calculations.

DISP is the size of the displacement made to each atom in Angstroms. If no value is provided it is defaulted to 0.001. It can be kept small because of the negligible numerical noise in the calculation of atomic forces as analytic derivatives.

NPAR sets the number of cores that will be allocated toward processing the MAISE run. This task is internally parallelized over the number of atoms, so NPAR should not exceed the total number of atoms in the system. Ideally, for equal distribution of load, it is recommended that number of atoms in the system be a multiple of NPAR.

NDIM controls whether the simulated structure is treated as periodic (wire, film, bulk) or non-periodic (nanoparticle). Failure to define NDIM properly will yield unphysical results.

  • 3 for periodic boundary structure types

  • 0 for cluster structure types

Examples

In the following example a Γ-point phonon calculation is carried out for a CuAg system.

Initially, only the files listed below are needed in the working directory for the phonon calculation: maise, POSCAR, model, and setup.

  • POSCAR contains a representation of the structure. In this example, CuAg is a cubic unit cell.

  • model is an interatomic interaction potential model relevant to the system. This example uses CuAg.

  • setup contains the FLAG settings for the MAISE run.

The setup file should contain the following settings:

=========================================================================================
                                        JOB/MODEL types
=========================================================================================
JOBT  22
=========================================================================================
                                    OPTIMIZATION parameters
=========================================================================================
DISP  0.001
NPAR  12
ETOL  1e-8
COUT  12
NDIM  3
=========================================================================================

The POSCAR file used in this example is:

CuAg
 1.00000000000000
  6.23344492208666    0.00000000000000    0.00000000000000
  0.00000000000000    6.23344492208668    0.00000000000000
  0.00000000000000    0.00000000000000    3.11672246104334
Cu Ag
4 4
direct
  0.00000000000000    0.00000000000000    0.00000000000000
  0.00000000000000    0.50000000000000    0.00000000000000
  0.50000000000000    0.00000000000000    0.00000000000000
  0.50000000000000    0.50000000000000    0.00000000000000
  0.25000000000000    0.25000000000000    0.50000000000000
  0.75000000000000    0.25000000000000    0.50000000000000
  0.25000000000000    0.75000000000000    0.50000000000000
  0.75000000000000    0.75000000000000    0.50000000000000

In order to calculate phonons, run MAISE:

$ maise

The output produced should resemble the following:

=======================================================================
|               Module for Ab Initio Structure Evolution              |
|                        version     maise.2.7.00                     |
|                 https://github.com/maise-guide/maise                |
=======================================================================
|                          Phonon calculation                         |
=======================================================================

 Eigenvalues at the Gamma point (cm-1)

  0     190.1189703392989543
  1     190.1189703392320780
  2     179.0697927772321236
  3     179.0697927772046967
  4     179.0697916398272014
  5     148.9589198226848339
  6     147.2041327277512721
  7     147.2041327277389939
  8     147.2041314956150586
  9     147.2041314956086353
 10     141.2417901193579155
 11     141.2417901192900445
 12     136.6290152004455649
 13     136.6290152004243623
 14     108.8997952619890128
 15     108.5283917347479274
 16     108.5283917347334182
 17     108.5283907788708575
 18     108.5283907788655426
 19       0.0201311023078189
 20       0.0201305313694524
 21       0.0198312735576416
 22      -4.7239924737495516
 23      -4.7239924776967381

For this periodic structure, MAISE highlighted the eigenvalues corresponding to the trivial translations and determined two degenerate imaginary modes.

After a successful MAISE run, the following files will be produced in the working directory: OUTCAR, OSZICAR, and CONTCAR.

  • OUTCAR is the main output file with all the eigenvalues and eigenvectors. For instance, eigenmode 22 has the following atomic displacements:

eigenvalue  22      -4.7239924737495516 (cm-1)
  0      -0.3326247221074291      0.0968110110123686      0.0000000000022677
  1       0.3326247221511021     -0.0968110108370395      0.0000000000022681
  2       0.3326247221510530     -0.0968110108369316      0.0000000000022679
  3      -0.3326247221076773      0.0968110110120847      0.0000000000022679
  4       0.1007547475905676     -0.3461746714541514      0.0000000000031000
  5      -0.1007547475342395      0.3461746716829493      0.0000000000030273
  6      -0.1007547475334858      0.3461746716842512      0.0000000000031703
  7       0.1007547475904161     -0.3461746714542330      0.0000000000025346
